Portable Steel Yard Ramps

Portable Steel Yard Ramps also known as Mobile Loading Dock Ramps make unloading trucks and railcars easy. Quickly unload freight where no dock access exists. Portable Yard Ramps facilitate unloading safely and efficiently. Available in capacities from 16,000 to 60,000 lbs

Models

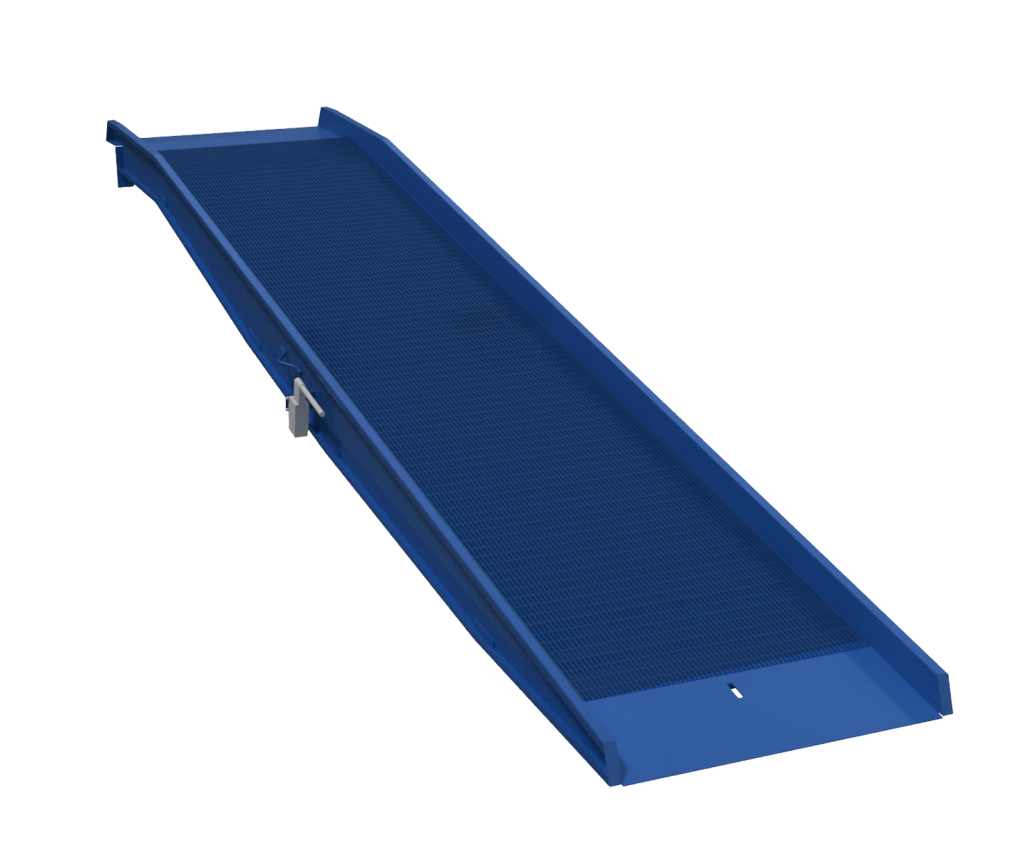

Portable Steel Yard Ramp (Model SYS)

Ideal for ground to truck loading applications

Portable Yard Ramp (MobilePRO+)

Flexibility to accommodate trailers of various heights & widths

(Model SYS)

Portable Steel Yard Ramp

Overview

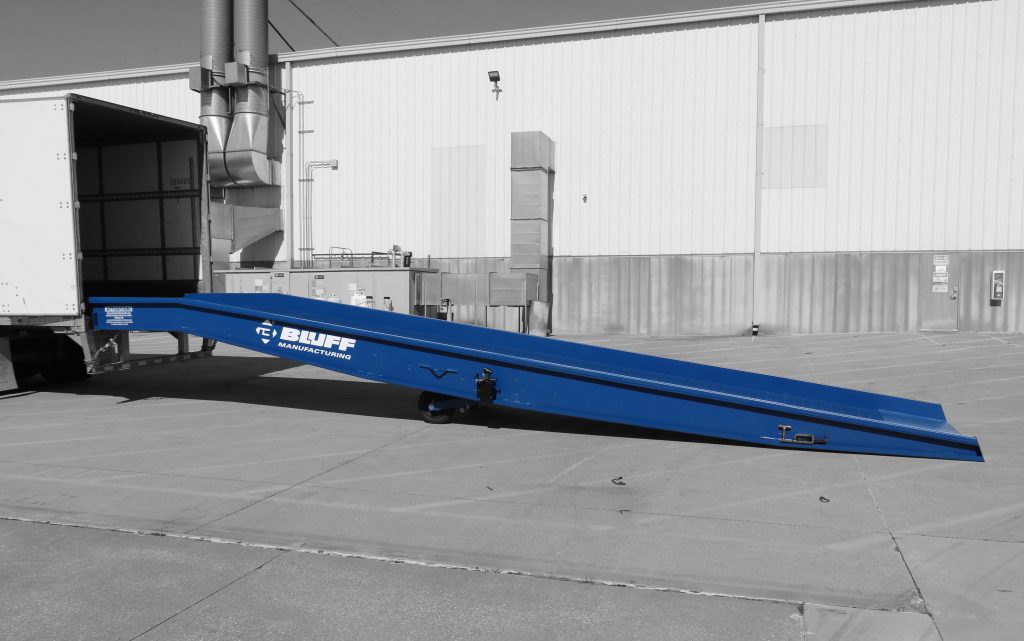

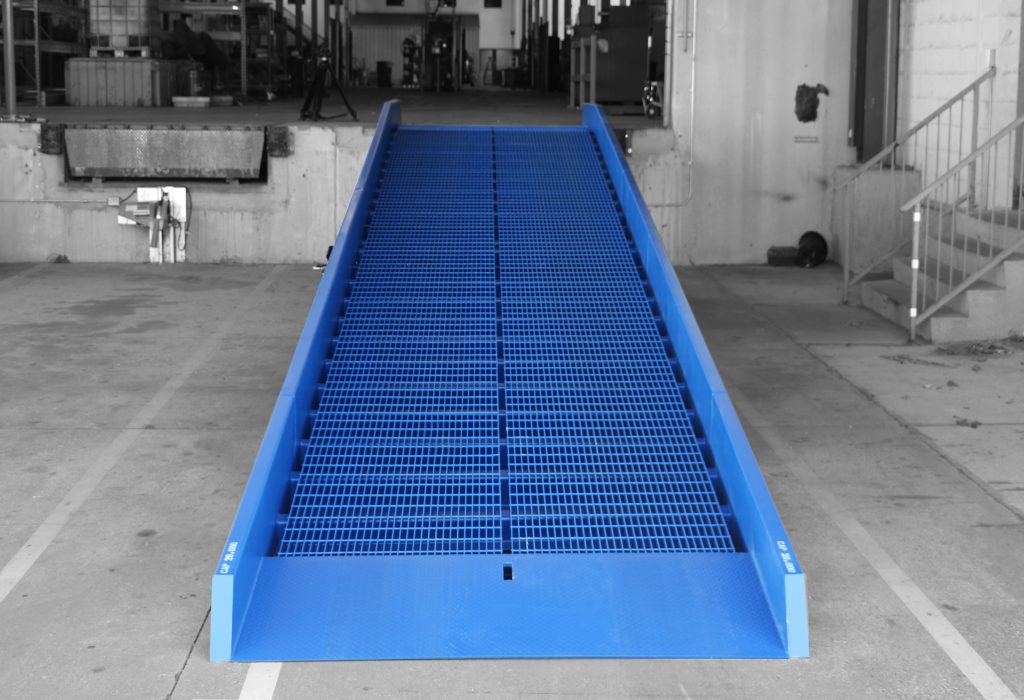

Portable Steel Yard Ramps also known as Mobile Loading Dock Ramps make unloading trucks and railcars easy. Quickly unload freight where no dock access exists. Portable Yard Ramps facilitate unloading safely and efficiently. Dock access is no longer a problem when a portable yard ramp is available. The yard ramp is simply moved into position at trailers, railcars, or docks. The operator utilizes a self-contained, double-acting hydraulic pump to adjust the unit to the proper position. In minutes you are ready to load or unload freight. Solid 18″ rubber tires provide easy positioning and towing. Open serrated steel grating provides excellent traction while preventing build-up of snow, water, and other debris. Beveled approach provides a smooth transition.

For truck or railcar to ground applications choose a 36′ yard ramp including a level off. Choose a 30′ straight yard ramp design for quick loading from dock to ground. High strength steel yard ramps make even the toughest unloading jobs easy!

Ground-to-truck has the same decision elements plus the need for a level off zone at the top before your load enters or leaves the truck. The length of this level off is dictated by your truck and load length (the most popular length is 6′). When you apply a capacity requirement of three times forklift truck capacity and a couple of accessory decisions your perfect solution becomes clear. We find that our 16SYS8436L model yard ramp is our most popular.

Capacities of 16,000 to 60,000 Lbs.

(Model SYS)

Portable Steel Yard Ramp

Features & Benefits

  • All-Steel Welded Construction
  • Capacities from 16,000 to 60,000 Lbs.

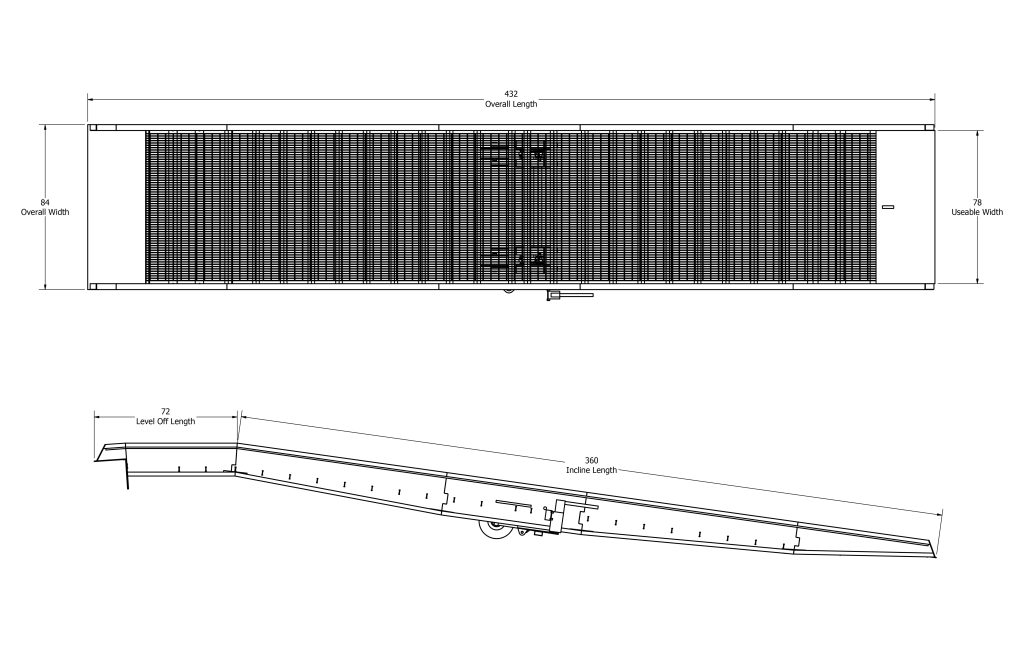

  • 36’ Design Includes 6’ Level-Off
  • Widths Starting at 70”
  • Lengths Up to 50’
  • 30’ Straight Design for Quick Loading from Dock to Ground
  • Includes Full Undercarriage with Solid 18” Rubber Tires
  • Safety Chains Included to Secure Yard Ramp to Trailer
  • 8” Run-Off Curbs
  • Option of Tow Bar or Ramp Clamp when Ordering
  • Double-Acting Hydraulic Pump
  • Traction Provided by Serrated Steel Grating & Diamond Tread Plate



Touch up paint for Yard Ramps:

  • Rust-oleum 249114 Gloss Deep Blue (Painter’s Touch line)
  • Rust-oleum 7786 Smoke Gray

(Model SYS)

Portable Steel Yard Ramp

Literature

Provides a detailed overview of the performance, operation, & other important characteristics.

Model (SYS) – Portable Steel Yard Ramp.pdf

Yard Ramp Sell Sheet.pdf

Freight Classes

Bluff Manufacturing strives to give the best possible customer service. Download our freight classes for shipping.

Freight Classes.pdf

Yard Ramp Worksheet

Download and fill out our Dock Board Worksheet to us help determine what solution best works for you.

Bluff_Yard_Ramp_Worksheet.pdf

Bluff YardRamp Owners Manual.pdf

Bluff Yard Ramp Offloading Instructions.pdf

(Model SYS)

Portable Steel Yard Ramp

Options & Accessories

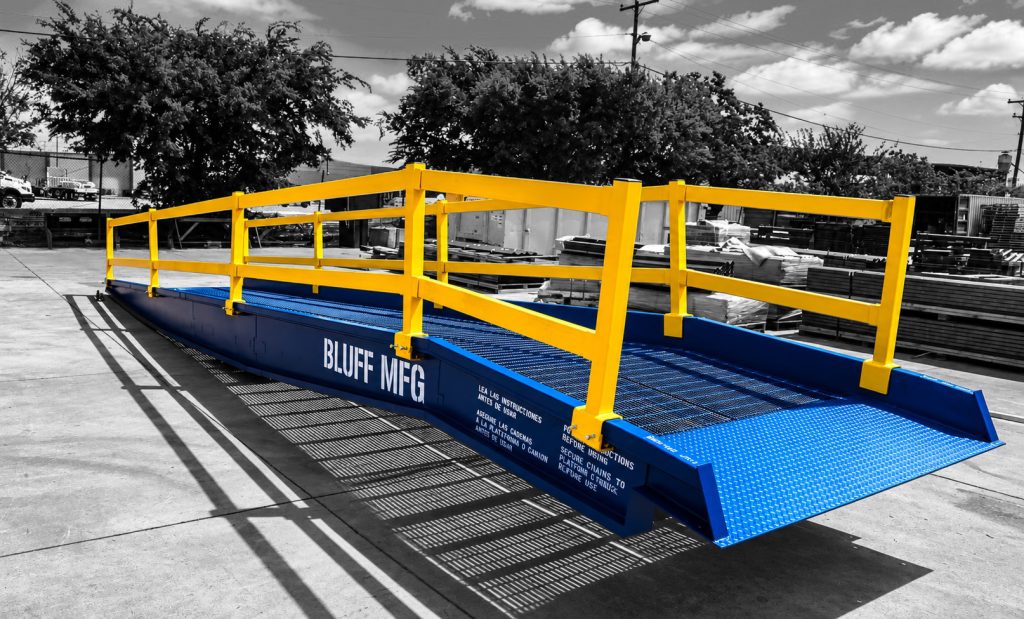

  • Handrails
  • Edge of Doc or Pit Leveler
  • Platform Connection
  • Ladder or Stairs
  • Hinged Lip
  • Bumpers
  • Fixed or Adjustable Legs
  • Pneumatic Wheels
  • Caster Jack Legs
  • Fork Pockets
  • Expanded Metal Added to Apron for Enhanced Traction
  • Full Steel Tread Plate Deck
  • Truck Restraint Connection
  • Custom Sizes & Designs Available
Model Number Capacity (lbs) Width (in) Length with Level Off (ft) Weight (lbs)
16SYS7036L 16000 70 36 5102.00
16SYS7036L-AL-HL 16000 70 36 5544.00
16SYS8436L 16000 84 36 6350.00
16SYS8436L-AL-HL 16000 84 36 6401.00
16SYS9636L 16000 96 36 7150.00
20SYS7036L 20000 70 36 5327.00
20SYS7036L-AL-HL 20000 70 36 5646.00
20SYS8436L 20000 84 36 6084.00
20SYS8436L-AL-HL 20000 84 36 6525.00
20SYS9636L 20000 96 36 6912.00
20SYS9636L-AL-HL 20000 96 36 7278.00
25SYS7036L-AL-HL 25000 70 36 6094.00
25SYS8436L 25000 84 36 6350.00
25SYS8436L-AL-HL 25000 84 36 7018.00
25SYS9636L 25000 96 36 7478.00
25SYS9636L-AL-HL 25000 96 36 8052.00
30SYS12030 30000 120 30 8508.00
30SYS7036L 30000 70 36 6020.00
30SYS7036L-AL-HL 30000 70 36 6337.00
30SYS8436L 30000 84 36 8264.00
30SYS8436L-AL-HL 30000 84 36 7261.00
30SYS9636L 30000 96 36 8265.00
30SYS9636L-AL-HL 30000 96 36 8567.00

(MobilePRO+)

Portable Yard Ramp

Overview

MOBILE YARD RAMP THAT ACCOMMODATES YOUR NEEDS!

The MobilePro+ portable yard ramp from Bluff was designed with the flexibility you need to accommodate trailers of various heights and widths. The flexibility doesn’t end there. This ramp features easily engaged wheels that allow you to move it about the yard. Convenience is the name of the game in today’s dynamic environment. With the MobilePro+ you can count on the same quality Bluff has delivered for decades combined with up-to-date features that keep you moving forward.

Capacities of 16,000 to 30,000 Lbs.

(MobilePro+)

Portable Yard Ramp

Features & Benefits

  • Tough All-Steel Welded Construction
  • Freestanding Design
  • Multi-Piece Hinged Lip to Service Various Trailers Widths
  • Adjustable Legs Allow a Service Range of 36-60”
  • 36’ Design Includes 6’ Level-Off
  • Widths Available from 70-120”
  • Lengths up to 50’
  • Available Capacities 16K, 20K, 25K, 30K Lbs.
  • Includes Full Undercarriage with Solid 18” Rubber Tires
  • Safety Chains Included to Secure Yard Ramp to the Trailer
  • 8” Run-Off Curbs
  • Choose a Tow Bar or Ramp Clamp when Ordering
  • Double-Acting Hydraulic Pump to Easily Activate Wheels for Mobility
  • High-Traction Design Features Serrated Steel Grating & Diamond Tread Plate
  • Warranty: 1 Year Hydraulic & 5 Year Structural

(MobilePro+)

Portable Yard Ramp

Literature

Provides a detailed overview of the performance, operation, & other important characteristics.

MobilePRO+ – Portable Yard Ramp.pdf

Yard Ramp Sell Sheet.pdf

Freight Classes

Bluff Manufacturing strives to give the best possible customer service. Download our freight classes for shipping.

Freight Classes.pdf

Freight Classes

(MobilePRO+)

Portable Yard Ramp

Options & Accessories

  • Handrails
  • Pneumatic Wheels
  • Fork Pockets
  • Bumpers
  • Expanded Metal Added to Apron for Enhanced Traction
  • Full Steel Tread Plate Deck
  • Custom Sizes & Designs Available
Model Number Capacity (lbs) Width (in) Length with Level Off (ft) Level Off Length (ft) Weight (lbs)
16SYS7036L-AL-HL 16000 70 36 6 5544.00
16SYS8436L-AL-HL 16000 84 36 6 6401.00
16SYS9636L-AL-HL 16000 96 36 6 7134.00
20SYS7036L-AL-HL 20000 70 36 6 5646.00
20SYS8436L-AL-HL 20000 84 36 6 6525.00
20SYS9636L-AL-HL 20000 96 36 6 7278.00
25SYS7036L-AL-HL 25000 70 36 6 6094.00
25SYS8436L-AL-HL 25000 84 36 6 7018.00
25SYS9636L-AL-HL 25000 96 36 6 8052.00
30SYS7036L-AL-HL 30000 70 36 6 6337.00
30SYS8436L-AL-HL 30000 84 36 6 7261.00
30SYS9636L-AL-HL 30000 96 36 6 8567.00
Choosing a Yard Ramp
Bluff emphasizes the importance of selecting a yard ramp with a capacity and design that can accommodate the specific needs of the application, considering factors such as forklift capacity, operational velocity, and long-term durability.
Considerations for Velocity & Durability
Depending on the velocity of operations (such as brisk loading and unloading or multiple shifts), Bluff may recommend upgrading to a higher capacity unit, such as a 25,000 lbs model. Additionally, recommendations may include thicker grating materials for enhanced durability, starting at 1-3/4" thickness compared to competitors' starting point of 1-1/4".
